Advantages of bonded neodymium iron boron magnet: fit checker, limits, and sourcing guide
Use the checker first. Then review where the advantages of bonded neodymium iron boron magnet, usually shortened to bonded NdFeB, are real on geometry freedom, multipole magnetization, and assembly efficiency, where the route still loses on raw magnetic output, and how to brief a supplier without creating a duplicate alias page.
Solve the shape and assembly problem first
If geometry, pole count, and assembly are the hard part, this route becomes more credible.
Do not hand-wave the lower BHmax
If the project lives or dies on magnetic output, sintered NdFeB still deserves first comparison.
Use the default values as a starting point, then test whether the advantages of bonded neodymium iron boron magnet, usually shortened to bonded NdFeB, are strong enough for your program.
Simple parts favor sintered routes more often; complex shapes and tight molded tolerances make bonded routes more credible.
Higher pole counts usually make bonded rings and isotropic magnetization more attractive, but only if the supplier can validate the magnetizing fixture.
Public screening guidance is roughly 150°C for PA injection grades and up to 180°C with PPS, but Arnold’s current page also warns its highest-energy injection grade can show substantial irreversible loss above 120°C. Treat anything above 120-150°C as grade-data territory.
If maximum magnetic output is the top requirement, remember that injection bonded magnets use far less magnetic powder than sintered Neo.
Tooling cost becomes easier to absorb when demand is repeatable.
Bonded NdFeB is strongest when net-shape molding, insert molding, or fewer assembly steps change the system cost.
Defaults are preloaded so you can evaluate immediately. Adjust geometry, pole count, temperature, and priority mix, then run the checker.
Advantages of bonded neodymium iron boron magnet: what is real, what is overstated
The short version of the advantages of bonded neodymium iron boron magnet is simple: bonded NdFeB is strongest when the part is hard to machine, needs multipole magnetization, or saves real assembly cost. It is weak when maximum flux density is the main job.
Arnold’s 61-65 vol% injection range is now reinforced by MQI’s current tool, which models nylon injection near 60 vol% loading.
Refs S3, S4
Arnold’s 79 vol% compression figure lines up with MQI’s current 77.5-80 vol% compression models, which is why bonded output improves when geometry stays simpler.
Refs S3, S4
Arnold’s current injection page keeps this tolerance benchmark and uses it to frame precision molded parts.
Refs S2
Arnold’s current page lists 2225 at 9.4 MGOe / 150°C and 2217 PPS at 5.17 MGOe / 180°C. Higher heat screening is not a free output upgrade.
Refs S2
Engineering or sourcing teams that are solving a geometry, pole-count, or assembly problem rather than a pure maximum-flux problem.
Refs S2, S3, S8

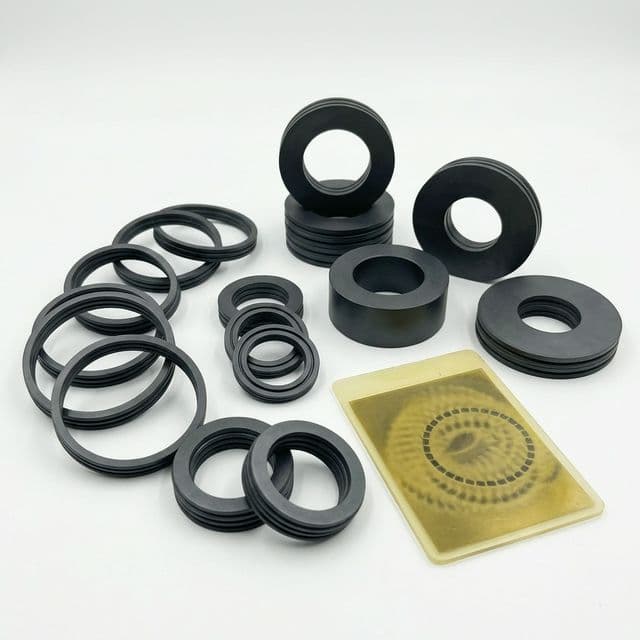

Thin-wall rings, encoder parts, insert-molded components, and compact rotors where multipole execution or net-shape molding saves downstream work.
Refs S3, S6, S8
Simple geometry plus a “highest possible air-gap field” requirement. That combination usually points back to sintered NdFeB first.
Refs S2, S9
Public sources are good for screening, not release. Ask for finished-part magnetic data, elevated-temperature loss data, and a prototype plan before approval.
Refs S10, S11
Research-enhanced evidence and claim boundaries
These are the stage1b additions that materially change the decision. Each fact either sharpens a conclusion or narrows where that conclusion stops being reliable.
On mobile, swipe tables sideways to compare all columns.
| Added fact | Why it changes the decision | Refs |
|---|---|---|
| Arnold’s current injection page lists 2225 at 9.4 MGOe / 150°C and 2217 PPS at 5.17 MGOe / 180°C. | This makes the temperature-output trade concrete. “Higher temperature” and “higher magnetic output” are often different grades, not the same one. | S2 |
| The same Arnold page warns that its highest-energy NdFeB injection grade can show substantial irreversible losses above 120°C regardless of binder. | This is the counterexample missing from many summaries: binder choice alone does not guarantee high-temperature performance. | S2 |
| Arnold’s comparison uses about 61-65 vol% injection loading and about 79 vol% compression loading, while MQI’s current tool models nylon injection at about 60 vol%, PPS injection at about 50 vol%, and compression at about 77.5-80 vol%. | This is the clearest public explanation for why bonded NdFeB wins on geometry and assembly, not on raw output, and why PPS grades usually give up more output. | S3, S4 |
| MQI says maximum operating temperature depends on the specific application, magnet type, and geometry; maximum process temperature is a separate powder metric based on less than 2% reduction after one hour in air. | This separates powder/process data from part-approval data. A hot powder or binder label does not prove a finished magnet survives the duty cycle. | S4 |
| ASTM A977/A977M covers initial magnetization, demagnetization, and recoil curves for bulk permanent magnets, and IEC TR 61807 defines elevated-temperature measurement guidance. | This turns “ask the supplier for data” into a reproducible request instead of a vague follow-up. | S10, S11 |
| MQI’s aging note says higher permeance coefficient, density, and full saturation improve aging behavior; low PC or partial saturation worsens it. | This explains why short magnets or underpowered magnetizing fixtures can disappoint even when the nominal material grade looks correct. | S7 |
| MQI’s coating page shows coating systems with very different salt-spray and pressure-cooker performance, from nickel to epoxy and parylene. | This is why bonded NdFeB still needs a coating-and-media validation plan. Polymer binder alone is not enough evidence. | S12 |
| TDK’s TMR angle-sensor note uses isotropic bonded NdFeB, lists up to 63 kJ/m³ BHmax for CM9BI, targets angular error at or below 0.1°, and recommends PPS when ambient temperature is expected at 150°C or above. | This is a concrete proof point for high-pole sensor work and a reminder that even successful sensor stacks still tie heat tolerance back to the binder system. | S8 |
| In a Magnequench/MQI automotive accessory motor redesign study published in 2011, optimized isotropic bonded NdFeB cut motor volume and weight by about 50-60% and raw material cost by about 8-15% versus a benchmark ferrite motor. | Cost-down is real in some redesigned systems, but it is not a drop-in material swap and it was not a bonded-vs-sintered test. | S5 |
| Claim | Use it when | Stop and re-check when | Status / refs |
|---|---|---|---|
| Bonded NdFeB lowers total system cost | Geometry or assembly steps disappear, and the motor or rotor is redesigned around the magnet. | You are comparing only magnet price, or you still have prototype volume with no tooling payback. | Case-specific only (S4, S5) |
| Multipole is a real advantage | The ring, sensor, or rotor needs custom pole count, skew, or radial/Halbach profile. | The supplier cannot confirm fixture saturation, or the application only needs a simple pattern. | Backed, but process-dependent (S6, S8) |
| A PPS or 180°C label means the hottest grade is also the best-performing grade | Never. Treat it only as a screening flag that a different binder family is in play. | Someone starts treating the binder label as proof of flux margin or irreversible-loss margin. | Rejected by current public grade tables (S1, S2, S8) |
| Brochure BHmax is enough for release | Only for a rough shortlist before drawings, duty cycle, and geometry-specific data arrive. | The part is moving into approval, customer PPAP, or a temperature-sensitive release gate. | Standards-based part data required (S10, S11) |
| Corrosion or media risk is low | Actual fluid, humidity, coating, and binder data have been checked for the chosen grade. | The program assumes polymer binder alone solves water, oil, solvent, or salt exposure. | Coating-specific only (S12) |
- Open public data does not prove universal lower rotor loss or lower NVH. Those outcomes depend on magnetization pattern, steel design, and test setup.
- Public cost examples either exclude assembly cost or require a full motor redesign. Treat “total cost down” as pending until your own BOM and tooling math are done.
- Open public sources still do not provide a universal bonded-vs-sintered total-cost benchmark or a full media-compatibility matrix for every binder-and-coating stack. Ask for data on the actual environment.
Advantages only stay credible when they survive comparison
Use the first table to decide whether bonded NdFeB belongs in the shortlist at all. Use the second to narrow compression vs injection once it does.
If the columns feel dense on mobile, swipe horizontally to see the full comparison.
| Dimension | Bonded NdFeB | Sintered NdFeB | Bonded ferrite |
|---|---|---|---|
| Typical decision role | Best when shape freedom, multipole patterns, or assembly savings change the system design. | Best when raw magnetic output is the first requirement. | Best when cost position and corrosion resistance dominate. |
| Published BHmax window | Current public injection examples on Arnold’s page run roughly 34-75 kJ/m³ (4.26-9.4 MGOe); commercial isotropic compression-bonded Neo is often about 64-80 kJ/m³, with specialty grades higher. (S2, S3, S4) | Arnold’s current product page lists common grades at roughly 255-430 kJ/m³ (32-54 MGOe). (S9) | Arnold’s published injection ferrite grades in the brochure sit roughly at 6-19 kJ/m³. |
| Why the output gap exists | Injection parts use about 61-65 vol% magnetic powder; compression bonded uses about 79 vol%, both below the 99.5% fully dense sintered route. | Near-fully dense processing keeps the highest output but sacrifices shape freedom and machinability. | Low energy product means package size grows quickly in compact motors and sensors. |
| Geometry and tolerance | Injection molding can reach standard ±0.003 in/in and supports insert/overmolding; compression is tight except in the press direction. | Complex geometry often requires grinding, machining, coating, and more handling care. | Can be cost-effective, but not a like-for-like replacement in compact high-flux packages. |
| Multipole and custom magnetization | Isotropic bonded NdFeB can be magnetized in radial, skewed, or other custom pole patterns if the fixture is designed for it. | Possible, but not with the same shape and process flexibility, especially for thin rings or integrated parts. | Ferrite can do multipole work too, but the lower flux limits compact designs. |
| Temperature and media boundary | Public guidance is only a screen: thyssenkrupp cites about 100°C compression, about 150°C injection PA grades, and up to 180°C with PPS, while Arnold’s current page shows the hotter 180°C example at only 5.17 MGOe and MQI says part max operating temperature still depends on application, magnet type, and geometry. Coating performance still varies sharply by system. (S1, S2, S4, S12) | Higher temperature grades exist, but corrosion protection and handling remain serious issues. | Usually the strongest high-temperature and corrosion baseline, but with much lower output. |
| Main caution | Do not promise universal cost-down, lower rotor loss, or easy fluid compatibility from public data alone. | Machining, brittleness, corrosion control, and simple-geometry cost models can still favor the sintered route. | Can simply miss the flux target in compact packages. |
Verification data to request before release
This turns the page from explanation into an executable supplier brief. If a supplier cannot answer most of this list, the route is not ready for approval.
| Decision gate | Minimum data to request | Why brochure data is not enough | Refs |
|---|---|---|---|
| Room-temperature magnetic baseline | Finished-part Br/Hcj plus demagnetization or recoil curves measured on the molded magnet using ASTM A977/A977M or an equivalent hysteresigraph method. | Brochure values can be powder- or coupon-level and may not represent the final part. | S10 |
| Elevated-temperature stability | Irreversible-loss or demagnetization curves over the working range, aligned with IEC TR 61807 or an equivalent supplier method. | The public 150-180°C window is only a screen; higher-temperature grades can still give up BHmax or coercivity quickly. | S2, S11 |
| Magnetizing fixture capability | Saturation or pole-pattern validation data, such as air-gap flux scans or proof that the requested pattern can be driven to full magnetization. | A supplier can own the material and still fail the requested multipole pattern. | S6 |
| Aging / load-line margin | Part-level PC or FEA summary plus any aging-loss data for the actual geometry. | MQI notes that aging depends on permeance coefficient, density, and saturation, not only on nominal grade. | S7 |
| Coating and media package | Coating stack, salt-spray/PCT/soak results, and any binder-media notes for the real environment. | Bonded magnets still show wide coating-performance spread; polymer binder alone is not a corrosion plan. | S12 |
Score the shape problem first
Complex or thin-wall shapes raise the value of net-shape molding and reduce the appeal of heavily machined sintered routes.
Treat multipole demand as a real signal
High pole counts, ring geometries, and sensor components repeatedly appear in supplier literature and application notes.
Penalize temperature and peak-flux pressure
The model intentionally cuts the score when operating temperature rises or when maximum flux becomes the non-negotiable target.
Add economics only after physics
Stable annual demand helps, but it does not rescue a poor physics fit. Tooling only matters after the material route still makes technical sense.
| Signal | How the page uses it | Why it matters |
|---|---|---|
| Geometry complexity | Positive weight | Bonded NdFeB becomes more defensible when it avoids heavy machining or solves thin-wall parts. |
| Pole count | Positive weight | Multipole patterns are a repeated value zone in public bonded-magnet literature. |
| Peak flux priority | Negative weight | This is the fastest way to separate “assembly problem” from “magnetic output problem”. |
| Operating temperature | Negative weight with boundary stop | Binder and grade selection can erase the advantage if thermal margin is tight. |
| Annual volume and assembly priority | Secondary weight | These determine whether the process economics and tooling effort are worth it. |
Three realistic scenarios where the answer changes
| Risk | Signal | Impact | Mitigation |
|---|---|---|---|
| Magnetic under-specification | The page is read as “bonded NdFeB is always better” rather than “better for certain problems”. | High | Verify the required field or torque target against sintered NdFeB before release. |
| Temperature oversimplification | A generic temperature number is used without checking binder system, grade, and exposure time. | High | Request grade-level temperature data, irreversible-loss curves, and long-duration exposure guidance. |
| Tooling economics mismatch | Prototype demand is too low, but a production-style bonded route is chosen anyway. | Medium | Use a staged validation path and confirm when tooling becomes economical. |
| Binder/coating-media mismatch | The grade is chosen without checking humidity, oil, cleaner, or solvent exposure against the actual binder-and-coating stack. | Medium | Request coating test data plus chemical-compatibility or soak data for the actual media and temperature profile before release. |
| Evidence inflation | Secondary claims like lower rotor loss are accepted without application-specific testing. | Medium | Keep those claims outside the core recommendation until standards-based supplier data or your own test data proves them. |
1. Send the drawing, pole-count target, and temperature profile first.
Do not ask only whether bonded NdFeB is possible. Ask whether compression or injection is the better route for the actual part.
2. Ask for a grade window, not a single magic grade.
That keeps flux, thermal margin, cost, and supply availability in the same conversation.
3. Make the validation plan answer why this is not a sintered route.
If the team cannot answer that question cleanly, the bonded route has not earned approval yet.
Keep the repeated decision questions in one traceable place
Source chain, evidence limits, and next-step links
The goal is decision quality, not citation theater. Each source below is used for a specific conclusion, and each conclusion still has a limit.
Process split, isotropic vs anisotropic framing, shaping variety, mechanical caveats, and the public 100°C / 150°C / 180°C temperature screening guidance.
Manufacturer factsheet. Accessed 2026-03-27; treat temperature data as case-by-case guidance, not approval data.
Current public injection-grade table, ±0.003 in/in tolerance benchmark, and the warning that the highest-energy injection grade can show irreversible loss above 120°C regardless of binder.
Current manufacturer product page accessed 2026-03-27. Stronger than an older brochure for present-day commercial screening, but still not approval data.
61-65 vol% injection loading, 79 vol% compression loading, 99.5% fully-dense sintered baseline, thin-wall ring boundary, brittleness, and cost-model caveats.
Conference deck from 2006. Older, but still the clearest public explanation of why the process tradeoff exists.
Current volumetric-loading models for nylon, PPS, and compression routes, plus the distinction between maximum operating temperature and maximum process temperature.
Current MQI tool accessed 2026-03-27. Useful for showing how loading and thermal definitions change with binder family.
Case-specific evidence that isotropic bonded NdFeB can reduce motor size and raw material cost versus ferrite when the motor is redesigned around the magnet.
Published 2011. Applicable to redesigned ferrite-replacement motor cases, not a universal bonded-vs-sintered cost claim.
3-4 T full magnetization requirement, radial/Halbach/skew pattern logic, and the warning that unsaturated bonded Neo lowers air-gap flux.
Current support guidance accessed 2026-03-27. Critical whenever the advantage depends on custom pole patterns.
How permeance coefficient, density, and saturation state change aging behavior.
Technical note used to explain why geometry and saturation can break catalog expectations.
Concrete sensor use case: isotropic bonded NdFeB, up to 63 kJ/m³ BHmax, angular-error target at or below 0.1°, and high-temperature grade guidance.
Application note. Useful proof for high-pole sensor use, not a general motor rule.
Current published sintered NdFeB comparison range and reminder that raw output still belongs to the sintered route.
Product page accessed 2026-03-27. Used only as a current commercial baseline.
Reference method for initial magnetization, demagnetization, and recoil curves on bulk permanent magnets.
Official ASTM standard page. Used to make supplier data requests more reproducible.
Reference guidance for measuring the magnetic properties of magnetically hard materials at elevated temperatures.
Official IEC publication page. Used for the temperature-validation checklist, not as a substitute for supplier testing.
Coating-system comparison, including salt-spray and pressure-cooker test differences that affect corrosion planning.
Current product page accessed 2026-03-27. Used to show that bonded magnets still need coating validation.
Move from screening to a supplier-ready brief
If the checker keeps the route alive, send the geometry, target magnetization pattern, temperature profile, and demand band in one email. That is enough for a serious first reply.
