Does this page explicitly answer "magnetic loading"?

Yes. The canonical specific-magnetic-loading page includes a dedicated magnetic-loading quick-answer block, then routes into tool checks and verification gates on the same URL.

Should "magnetic loading" have its own dedicated page?

No. Keep this alias on the canonical page to avoid split signals and duplicate-content risk.

Does this page explicitly answer "magnetic loading of induction motor"?

Yes. The induction-motor quick-answer section and screening matrix are included on the canonical specific-magnetic-loading URL.

Should "magnetic loading of induction motor" have its own dedicated page?

No. Keep this alias on the canonical page to avoid split signals and duplicate-content risk.

What Bav band is the typical induction-motor starting screen?

A practical screening baseline is often around 0.35-0.60 T, then narrowed by PF, thermal, and saturation checks for the actual duty.

Is a higher specific magnetic loading always the better decision?

No. It can improve compactness, but PF margin, saturation pressure, and thermal risk usually tighten first.

What has to be verified before approving a high-Bav decision?

Check tooth and yoke flux, no-load current, loss split, thermal rise, and duty-specific assumptions in the same design review.

What should I do if the checker returns a boundary result?

Treat it as a conditional concept and move to detailed electromagnetic plus thermal validation before procurement or tooling commitments.

What is specific magnetic loading in plain language?

It is the average air-gap flux density over the armature surface. In practical reviews, it is the magnetic-circuit loading number that tells you how hard the machine is being pushed magnetically.

Is higher specific magnetic loading always better?

No. It usually helps size and output coefficient, but it also worsens loss, PF, and saturation pressure once the design gets close to the top of the public band.

Does this page explicitly answer "magnetic loading"?

Yes. The dedicated "magnetic loading" quick-answer section on this page gives a three-state screening result and routes each state to a concrete next action.

Should "magnetic loading" have a separate dedicated page?

No. Keep this alias on the canonical specific-magnetic-loading URL so tool logic, evidence, and conversion path stay in one place.

How should I interpret "choice of specific electric and magnetic loading"?

Treat it as a coupled choice of Bav and specific electric loading (ac), not a magnetic-only decision. On this page, the executable pairing matrix is DC-machine-specific. In DC machines, raising Bav without coordinated ac and commutation/thermal checks often shifts risk rather than removing it.

What Bav range should I start with?

Start with the public machine-family band, not a universal number. Classical induction-motor references often use about 0.30-0.60 T, while other machine families differ.

How should I answer the generic query "choice of specific magnetic loading" before machine type is fixed?

Use a three-step route: lock machine family, lock duty (line-frequency vs inverter/high-frequency), then choose the relevant matrix on this page. If machine family is still unknown, do not freeze a Bav target; treat it as a pending-screening value.

Does this page explicitly answer "how to determine magnetic loading"?

Yes. Use the dedicated method block on this page: estimate Bav from machine geometry and pole flux, then validate the result against machine-family band, duty assumptions, and the verification checklist before approval.

Does this page explicitly answer "choice of specific magnetic loading in induction motor"?

Yes. The induction-motor choice layer and matrix provide a direct screening answer for that exact query on the same canonical URL, then route high-band outcomes to the verification checklist.

Does this page explicitly answer "choice of specific magnetic loading in synchronous machine"?

Yes. The synchronous-machine choice layer separates wound-field and PM assumptions, then gives an explicit screening matrix and next-step validation path on the same canonical URL.

Why does higher Bav reduce size?

Because output coefficient rises with specific magnetic loading. The machine can deliver the same rating with less active volume if the rest of the magnetic circuit still has margin.

Why does power factor often get worse?

In induction designs, higher magnetic loading raises the magnetizing burden, and the lecture-note references explicitly call out poor PF as a downside of high air-gap flux density.

Why do some sources say iron loss rises, while one motor study shows it can fall?

Because the sources are measuring different things. Steel tables report loss per kilogram at fixed material conditions, while a full motor redesign can shrink the core enough to reduce total iron loss. Treat material loss and motor loss as separate checks.

Does higher Bav always increase overload capacity?

Public notes list overload capacity as a potential upside, but that does not cancel the PF, loss, or saturation penalties. You still need a whole-design check.

What breaks first in a bad high-Bav decision?

Usually tooth/core saturation margin, no-load current, PF, or thermal headroom. Which one appears first depends on topology and duty.

Can you quote a fixed size or cost saving for every +0.1 T increase in Bav?

No reliable public cross-machine dataset supports that shortcut. The payoff stays geometry-, material-, and supply-chain-specific, so treat any fixed saving claim as unverified unless it comes from the exact design family.

Is this checker valid for PM or axial-flux machines?

It is safer as a screening aid than as a design approval tool. The bands here come from classical electrical-machine references, so exotic topologies need their own detailed validation.

Why does cooling change the top band only slightly?

Cooling can carry more loss, but it does not remove tooth/core saturation limits. That is why the checker only widens the top band modestly.

Why does higher frequency tighten the band?

Because the same flux density produces more loss pressure once electrical frequency and harmonics rise. Official traction-grade steel data already quotes about 12.0-12.5 W/kg at 400 Hz and 1 T for a 0.25 mm grade, which is why the checker tightens the band rather than reusing a quiet 50-60 Hz upper limit.

Before approving high-band Bav, how strict should voltage-balance checks be?

Treat it as a hard gate. DOE guidance based on NEMA MG-1 logic recommends <=1% terminal-voltage unbalance and warns that current unbalance can be 6-10x the voltage unbalance (for example, 27.7% line-current unbalance at 2.5% voltage unbalance in a 100 hp case).

If the motor has an IE4 / IE5 class, does that already include converter harmonic losses?

No. IEC 60034-30-1:2025 states that motor losses from harmonic supply content, cables, filters, and converters are outside those motor IE tables. For inverter-fed duty, you still need converter-fed loss verification.

What is the practical difference between converter-capable and converter-duty for this checker?

Use it as a risk split: converter-capable means it may run on converters under defined limits, while converter-duty expectations are stricter and should include explicit derating and interface assumptions. The checker treats missing category evidence as a no-approval condition near the high band.

Why do cable length and carrier frequency matter in inverter-fed high-Bav decisions?

Because PWM rise-time reflections can create peak-voltage overshoot and bearing stress that do not appear in simple steady-state checks. DOE guidance notes that existing low-voltage motors are often safer when PWM peaks stay below about 1,000 V, and that higher carrier frequencies can raise bearing-damage risk unless mitigation is applied.

For synchronous PM machines, how should I interpret the -0.12%/degC magnet coefficient?

Treat it as a screening sensitivity, not a universal pass/fail line. A rough +100 degC rise can imply around 12% reversible Br drop before irreversible demagnetization checks. You still need grade-level maximum-temperature and demagnetization evidence for the real duty cycle.

Why does this page include rare-earth supply data in a magnetic-loading decision?

Because high-Bav PM routes can be technically feasible but commercially fragile under concentrated NdPr/Dy supply. If procurement concentration and fallback paths are not reviewed together with Bav, project timing and cost risk can dominate late.

Does better steel or adhesive bonding automatically make a high Bav decision safe?

No. Official traction-grade data and bonding claims show mitigation levers, not blanket approval. You still need matching tooth/core flux, loss, and thermal evidence for the actual duty point.

What should I do with a boundary result?

Treat it as a concept only. Step back to a safer band or move immediately into detailed electromagnetic plus thermal analysis.

What if the project has IE4 / IE5 or regulated efficiency targets?

Then higher Bav becomes harder to justify. EU Ecodesign already requires IE4 for some 75-200 kW, 2/4/6-pole three-phase motors from July 1, 2023, and IEC 60034-30-1:2025 (published 2025-12-01) includes IE5 while noting that most covered motors are rated for duty type S1. Efficiency, duty-type, and temperature-rise evidence become gates, not optional follow-ups.

Can I cite IE4 / IE5 labels directly for DC commutator motors?

No. IEC 60034-30-1:2025 excludes motors with mechanical commutators and also excludes motors completely integrated into products when they cannot be tested separately. For those cases, keep Bav/ac decisions tied to the actual project specification and test method, not generic IE labels.

If we also ship to the US, what minimum compliance check should be added?

Add an explicit US pathway gate. DOE points to 10 CFR 431.25-431.26 for energy-conservation standards and 10 CFR 431.14-431.21 for test procedures for electric motors distributed in US commerce. Treat this as part of pre-approval scope, not a post-design paperwork step.

What if the launch date lands near or after June 1, 2027 in the US?

Add a date-bound compliance check, not just a country check. 10 CFR 431.25 includes a post-2027 scope window that extends some covered classes to 750 hp and adds air-over categories. Keep the launch date, class mapping, and horsepower scope in the same approval packet.

Hybrid page: checker + report

Specific magnetic loading checker: when higher Bav helps and hurts

If you are reviewing the advantages and disadvantages of highly specific magnetic loading, start with the checker. If your query is simply "magnetic loading", use the quick-answer section on this page to classify risk and next action first. If your query is "how to determine magnetic loading", use the method block on this page to map Bav from geometry and pole-flux assumptions first. If your query is "magnetic loading of induction motor", run the checker first, then move to the induction quick-answer and decision matrix on this same page. If your query is "choice of specific magnetic loading", lock machine family plus duty first, then branch into induction / synchronous / DC paths. If your query is "choice of specific magnetic loading in induction motor", place Bav in the induction-motor band first. If your query is "choice of specific magnetic loading in synchronous machine", split wound-field and PM assumptions before pushing Bav upward. If your query is "choice of specific electric and magnetic loading", treat it as a coupled Bav + specific electric loading decision first, then apply the DC-machine-specific checks below before detailed design.

Published 2026-03-28Updated 2026-04-26

Tool layer

Specific magnetic loading checker

Enter a candidate specific magnetic loading, then screen whether you are still in a practical design band or already pushing into the classic “advantages and disadvantages of highly specific magnetic loading” zone. If your query is "how to determine magnetic loading", use this as the fast screening step after estimating Bav from your current geometry and flux assumptions.

Machine family

The public screening bands come from classical electrical-machine design references, so induction, synchronous, DC, and turbo classes do not start from the same Bav window.

Candidate specific magnetic loading (T)

Specific magnetic loading is the average air-gap flux density over the armature surface. A common estimate is Bav = (p x Phi) / (pi x D x L). This tool treats Bav as a screening input, not a final approval value.

Cooling and thermal margin

Better cooling usually widens the practical upper band a little. Poor cooling tightens the thermal and loss margin fast.

Main design priority

High specific magnetic loading mainly buys size and torque-density. If efficiency or power factor leads the decision, the usable band usually shifts downward.

Frequency context

Rising electrical frequency increases iron-loss pressure, so the same Bav becomes harder to justify without thinner or better steel, stronger cooling, and matching loss data. For inverter-fed duty, treat motor IE class and converter-fed system loss as separate checks.

Review the advantages and disadvantages section See how to determine magnetic loading

Ready to screen

Run the checker with the default band or your own Bav target

The defaults represent a high-but-still-common industrial induction-motor starting point. Change the machine family, cooling, and frequency context before you evaluate.

Reviewed by BondedMagnetSource Team29 public sources cross-checkedRecheck every 6 months or when IEC / EU rules change

Canonical intent links: if your query is magnetic loading / choice of specific magnetic loading / how to determine magnetic loading / magnetic loading of induction motor / choice of specific magnetic loading in induction motor / choice of specific magnetic loading in synchronous machine / choice of specific electric and magnetic loading, this URL is the single canonical page for that alias cluster.

Single canonical URL for `specific magnetic loading`, the alias `magnetic loading`, the alias `how to determine magnetic loading`, the alias `magnetic loading of induction motor`, the alias `advantages and disadvantages of highly specific magnetic loading`, the alias `choice of specific magnetic loading`, the alias `choice of specific magnetic loading in induction motor`, the alias `choice of specific magnetic loading in synchronous machine`, and the alias `choice of specific electric and magnetic loading`.

Tool-first first screen with explicit result states, next-step guidance, and a direct inquiry CTA.

Public machine-design references, official electrical-steel data, DOE motor-power-quality data, PM magnet-grade temperature data, and current IEC / EU / US compliance signals rechecked on April 26, 2026.

Judge the band before you claim the upside

High Bav earns its keep through compactness and output coefficient, not through a vague “more is better” instinct.

Think about the penalty before you push higher

Power factor, loss, and saturation pressure often decide feasibility before the smaller frame does.

Alias quick answer

Magnetic loading: quick answer before machine-specific deep dives

For the generic query "magnetic loading", keep the decision on this single canonical URL. Screen risk first, then branch into machine-family-specific sections only when needed.

Three-state screen for the generic magnetic-loading query

Magnetic loading screen state	What it usually means	Smallest safe next action
Baseline in-band	You can continue screening without immediately forcing a boundary review.	Run the checker and keep machine family + duty assumptions fixed.
Upper-band proposal	Compactness upside may be real, but PF, thermal, and saturation pressure tighten together.	Move to the verification table before approving procurement or tooling steps.
Boundary-state proposal	This is no longer a quick-screen decision.	Treat as a conditional concept and switch to detailed electromagnetic + thermal validation.

What to do immediately after the quick answer

If the query is only "magnetic loading", do not freeze a single Bav before machine family is fixed.

When frequency, voltage quality, or converter duty is unknown, treat high-band Bav as provisional.

Every outcome must route to a next action: keep in-band, verify, or escalate to boundary analysis.

Back to checker Jump to verification gates

Core conclusions

Advantages and disadvantages of highly specific magnetic loading: what stays true after the equations

Higher specific magnetic loading is usually a compactness move, not a free performance upgrade. It can reduce frame size and active material, but power-factor margin and saturation pressure usually tighten first. Iron loss is the subtle part: steel-level loss per kilogram rises with flux density, yet whole-motor iron loss can still fall if the core shrinks enough.

0.35-0.60 T

Common 50 Hz induction-motor screening band

The J.C. Bose University lecture note and the publisher textbook both place classical induction-motor Bav in this range.

Refs S1, S2

0.40-0.80 T

Typical DC-machine textbook band

Public machine-design references use a wider DC-machine band, which is why the checker does not reuse one fixed threshold for every machine family.

Refs S1

<1.8 T / 1.3-1.5 T

Tooth and core flux-density reminders

Higher Bav still has to leave room for tooth and core flux density; the lecture note uses these limits as the classic guardrail.

Refs S2

<=1% (terminal)

Voltage-unbalance gate before high-band Bav approval

DOE guidance based on NEMA logic recommends keeping terminal voltage unbalance within 1%, because current unbalance can amplify 6-10x and quickly consume thermal/PF margin.

Refs S24, S25

~2.3-2.5x

Steel-level core-loss increase from 1.0 T to 1.5 T at 50 Hz

Derived from thyssenkrupp public NGO tables for grades M235-35A and M350-50A. This is a material-level effect, before motor geometry shrink is considered.

Refs S4

Best-fit reader

Engineering teams screening Bav before detailed electromagnetic design, especially when package size, frame cost, or output coefficient pressure is already visible.

Refs S1, S2

Strongest upside

Higher specific magnetic loading can reduce machine size, active material, and cost when the magnetic circuit still has tooth, core, and thermal margin. In the 2019 5.5 kW induction-motor study, higher Bav also reduced core weight enough that total iron loss fell while copper loss rose.

Refs S2, S3

Most common downside

In induction machines, magnetizing current and power-factor pressure usually show up early as Bav climbs. Steel-level remagnetization loss per kilogram also rises with flux density and frequency, so high-frequency or efficiency-constrained projects run out of room faster.

Refs S2, S4, S5, S6, S7

Practical rule

Do not approve a “high Bav” argument unless the same review includes tooth/core flux, no-load current, power factor, steel grade plus lamination thickness, joining route, and thermal evidence.

Refs S2, S4, S5, S6

Induction choice layer

Choice of specific magnetic loading in induction motor: classify the band before optimizing size

For induction motors, start with a band decision before committing to compactness claims. The tool and matrix below keep Bav, PF margin, thermal burden, and saturation checks in one screening path.

Induction-motor Bav decision matrix (screening layer)

Induction-motor context	Suggested Bav band	Usually suitable when	Usually not suitable when	Next step
PF and efficiency margin are primary constraints	0.35-0.45 T	No-load current and PF are already tight, and efficiency is a formal gate.	Package size is the urgent blocker and no compactness route exists elsewhere.	Hold a conservative band, then optimize leakage and thermal path first.
Balanced industrial baseline	0.45-0.55 T	Need practical compactness without immediately forcing a boundary-state review.	Cooling assumptions are weak or duty cycle is poorly defined.	Keep Bav in-band and validate tooth/core flux plus no-load current together.
Compactness push with evidence	0.55-0.60 T	Frame reduction is valuable and the team can provide electromagnetic plus thermal evidence.	PF is already weak, or high-frequency duty is expected without matching steel-loss data.	Run full PF/loss/temperature checks before freezing design direction.
Boundary proposal	Above ~0.60 T	Only for special topologies or unusually strong cooling and material evidence.	Used as a shortcut in place of electromagnetic and thermal validation.	Treat as FEA territory and hold procurement/tooling decisions until verification closes.

Induction choice is still a screening conclusion

This matrix answers the exact alias intent (`choice of specific magnetic loading in induction motor`) on the canonical URL. It is a pre-design screen, not a final approval rule.

Synchronous choice layer

Choice of specific magnetic loading in synchronous machine: separate topology assumptions before you push Bav

For synchronous-machine screening, separate wound-field and PM assumptions first. Classical wound-field references can run a broader band, while PM and inverter-rich duty usually hit magnet-temperature and converter-loss constraints earlier.

Synchronous-machine Bav decision matrix (screening layer)

Synchronous-machine context	Suggested Bav band	Usually suitable when	Usually not suitable when	Next step
Efficiency and thermal margin first	0.48-0.55 T	Grid-frequency duty, conservative rotor thermal assumptions, and efficiency margin are hard gates.	The project is primarily frame-limited and has not checked losses against converter duty.	Stay conservative, then validate rotor/stator thermal map and PF margin first.
Balanced synchronous baseline	0.55-0.62 T	Need practical compactness while keeping saturation and thermal checks manageable.	Machine topology and supply type are still ambiguous.	Lock topology (wound-field vs PM), then verify tooth/core flux and thermal evidence in one package.
Compactness push with strong evidence	0.62-0.70 T	Mostly for wound-field or strongly cooled designs with complete loss and temperature evidence.	PM rotor temperature margin, grade-specific magnet thermal rating (for example N/H/SH/UH/EH classes), demagnetization risk, or harmonic-loss evidence is incomplete.	Treat as conditional; run electromagnetic plus thermal validation and grade-level PM demagnetization checks before freezing design.
Boundary proposal	Above ~0.70 T	Only when topology-specific evidence is unusually strong and duty is tightly bounded.	Used as a shortcut without demagnetization, harmonic-loss, converter-duty, and PM material-supply checks.	Move to full FEA, coupled thermal verification, and PM material-risk review before any procurement commitment.

Synchronous choice is still a screening conclusion

This matrix answers the exact alias intent (`choice of specific magnetic loading in synchronous machine`) on the canonical URL. It is still a screening layer. For PM and converter-fed duty, upper-band decisions remain boundary proposals until demagnetization, harmonic-loss, and temperature evidence is closed. Public NdFeB tables also show why this is topology-specific: a common reversible Br coefficient is around -0.12%/degC and listed maximum operating temperatures differ by grade class (for example, 80/120/150/180/200 degC).

DC pairing layer

Choice of specific electric and magnetic loading: map intent first, then pair Bav and ac for DC machines

For DC-machine screening, treat specific magnetic loading (Bav) and specific electric loading (ac) as a coupled decision. Pushing only one side usually shifts risk into commutation, thermal rise, or saturation checks.

DC-machine quick pairing matrix (screening only)

DC-machine intent	Magnetic loading (Bav)	Specific electric loading (ac)	What this usually means	Refs
Efficiency and commutation margin first	0.40-0.55 T	Keep ac near the lower practical band for brush and thermal control	Safe starting point when PF is not the main issue but commutation and temperature rise are tight.	S1
Balanced industrial sizing	0.50-0.65 T	Moderate ac with explicit cooling assumptions	Typical DC-machine compromise: package reduction is visible while saturation and heat checks stay manageable.	S1, S3
Compactness push under controlled cooling	0.65-0.80 T	ac can only rise with matched copper-loss and thermal evidence	Higher output coefficient is possible, but commutation margin and copper-loss burden become hard gates.	S1, S3
Boundary proposal	Above ~0.80 T	Any ac increase must be treated as design-risk multiplication	Do not approve on screening logic alone; move to full electromagnetic + thermal validation.	S1

DC choice is still a screening conclusion

This page keeps the exact alias intent in one canonical URL. For implementation, the matrix below is DC-machine-specific and still only a pre-design screen. Final selection needs project-specific commutation, thermal, and material validation.

When higher specific magnetic loading usually helps

The more of these signals appear together, the more credible the case for moving Bav upward becomes.

The frame or package must shrink and there is still room in tooth and core flux density.

Output coefficient and active-material reduction matter more than absolute efficiency optimization.

Cooling, electrical-steel selection, lamination thickness, and loss validation are already part of the design process.

The team accepts that higher Bav is a deliberate trade, not a default “better” setting.

When the “high loading” story is usually overstated

When these signals dominate, go back to PF, loss, and magnetic-circuit margin before you keep selling “higher Bav.”

Power factor, no-load current, or efficiency are already weak in the baseline design.

The design uses poor cooling or higher electrical frequency but still assumes a textbook Bav increase is harmless.

Tooth and back-iron limits are not checked while air-gap average flux density is pushed upward.

The argument only promises smaller size without showing loss, saturation, and thermal consequences.

Stage1b gap audit

What was missing, what was added, and what is still pending

This round was re-audited on 2026-04-26. The focus was on evidence density and decision usability, not copy-level paraphrasing.

Gap-to-evidence closure map

Gap found	Evidence added	Decision impact	Status	Refs
Inverter-duty approval lacked quantified cable-length and insulation-stress thresholds.	Added DOE Tip Sheet #14 limits: reflected-wave risk usually low below ~15 ft cable; spikes can reach ~2,150 V in some 480 V systems; inverter-duty insulation reference is 3.1x line voltage (1,426 V for 460 V motors).	High-band Bav proposals now require cable length, rise-time class, and terminal-peak-voltage evidence before approval.	Closed in this round	S28
The page did not separate magnetic-loading gain from variable-torque speed-control leverage.	Added DOE Tip Sheet #11 data: for variable-torque loads, a 20% speed reduction can cut power by about 50%; part-load ASD efficiency can also drop materially at very low load.	When energy savings are the main goal, teams now check speed-control pathway and part-load drive map before pushing Bav upward.	Closed in this round	S29
Verification checklist was light on drive-system evidence requirements for inverter-fed high-Bav cases.	Added two mandatory gates: PWM insulation-stress gate and ASD part-load efficiency map gate with explicit minimum data fields.	Upper-band decisions now fail fast when system-level duty evidence is missing.	Closed in this round	S28, S29
A universal public formula to convert inverter electrical stress into a safe Bav correction was still missing.	No reliable open standards formula found during this refresh; only condition-specific guidance and case-level thresholds are available.	Marked as pending; boundary-state concepts still require project-level electromagnetic + thermal validation.	Pending (public data insufficient)	S28, S29

Research-enhanced layer

What changed after a stronger source check

The earlier draft was still too vague in twelve places: average air-gap flux versus tooth/core flux, sheet-loss data versus total motor loss, line-frequency duty versus inverter/high-frequency duty, motor-only IE classes versus drive-system losses, textbook sizing logic versus standards scope, power-quality assumptions (voltage unbalance / off-design voltage / PWM stress) versus magnetic-loading margin, EU-only compliance framing versus US shipment reality, legacy test assumptions versus the latest IEC method updates, US 2027 rule-window impact, and claim-evidence obligations when publishing efficiency numbers. The refreshed layer keeps those questions separate.

thyssenkrupp: 2.47x / 2.33x; JFE examples: 2.33x / 2.50x

Material-level loss rise is real

Cross-vendor public tables point in the same direction when 50 Hz flux density rises from 1.0 T to 1.5 T: thyssenkrupp M235-35A goes 0.95 -> 2.35 W/kg and M350-50A goes 1.50 -> 3.50 W/kg, while JFE examples include 35JN210 (0.90 -> 2.10 W/kg) and 50JN300 (1.20 -> 3.00 W/kg). If the proposal omits steel grade and test condition, the evidence is incomplete.

Refs S4, S8

5.5 kW case, Bav 0.3 -> 0.8 T

Whole-motor iron loss can still go the other way

The 2019 induction-motor study reports smaller dimensions, lower core weight, lower iron loss, and higher copper loss as Bav rises at fixed A1. The penalty moved rather than simply growing everywhere.

Refs S3

2.5% voltage unbalance -> 27.7% current unbalance in a 100 hp example

Voltage unbalance can erase magnetic-loading margin quickly

DOE motor guidance (extracted from NEMA MG-1 logic) defines percent voltage unbalance and recommends keeping motor-terminal unbalance at or below 1%. The same source warns that current unbalance can be 6-10x the voltage unbalance, and reports 27.7% line-current unbalance in a 100 hp example at 2.5% voltage unbalance.

Refs S24, S25

At 2% voltage unbalance: 80 degC balanced rise -> +6.4 degC extra

Thermal penalty from unbalance is quantifiable

DOE Tip Sheet #7 provides a practical temperature-rise estimate for unbalanced supply and ties it to insulation-life risk. The same document reiterates a common reliability rule: winding-insulation life roughly halves for each 10 degC rise in operating temperature.

Refs S24

90% nameplate voltage: torque -19%, efficiency -1% to -3%; 110%: torque +21% but PF -2% to -7%

Off-design voltage changes torque/PF before Bav checks finish

DOE Tip Sheet #9 summarizes IEEE 141-based induction-motor impacts under +/-10% voltage operation. Because torque scales with voltage ratio squared, a Bav-up concept that already has tight PF or thermal margin can fail on supply-voltage reality even when geometry assumptions look acceptable.

Refs S26

DOE tip: keep PWM overshoot below 1,000 V for many existing low-voltage motors; carrier frequencies above 5 kHz raise bearing-risk pressure

PWM cable and switching setup can become a hidden boundary

DOE Tip Sheet #15 shows that rise-time and cable length can amplify voltage peaks in PWM-fed drives. It states that high-frequency overshoots above about 1,000 V can trigger turn-to-turn stress in existing low-voltage motors and recommends practical mitigations such as shorter cable runs, dV/dt filters, and bearing-current controls.

Refs S27

IEC 60034-2-3:2024 uses seven standardized load points

Converter-fed loss verification is now explicit

For variable-speed AC motors, IEC 60034-2-3:2024 defines a converter-fed loss/efficiency path that spans constant-flux, field-weakening, and overload ranges using seven standardized load points. A single rated-point claim is no longer enough when the duty is inverter-driven.

Refs S12

IEC TS 60034-25:2022 added terms + derating annex

Converter-capable is not the same as converter-duty

IEC TS 60034-25:2022 explicitly adds “converter capable motor” and “converter duty motor” definitions, and adds Annex D derating requirements. That means a high-Bav proposal for inverter duty must state which category the motor actually targets.

Refs S13

IEC 60034-30-1:2025 vs IEC TS 60034-30-2:2016 scope split

Line-operated IE classes and converter-fed classes are not interchangeable

IEC 60034-30-1:2025 covers single-speed motors rated for sinusoidal 50/60 Hz supply, while IEC TS 60034-30-2:2016 classifies variable-speed machines not covered by 60034-30-1 and not designed for direct-on-line operation. For inverter-only PM or reluctance machines, treating one table as universal is a scope error.

Refs S6, S23

IEC 60034-2-1:2024 and IEC 60034-1:2026 are now current

Standards baseline moved in 2024-2026

Loss/efficiency verification and machine scope assumptions should cite the latest standards revision. IEC 60034-2-1:2024 updates loss and efficiency determination methods, while IEC 60034-1:2026 updates rating/performance references, including clarifications for integrated converter components and thermal-class tables.

Refs S9, S10

EU stage-2 date 2023-07-01; IEC IE5 edition published 2025-12-01

Efficiency or compliance can become the real limiter

If the product must hit regulated or premium efficiency targets, high Bav has less room. The EU stage-2 requirement from July 1, 2023 adds IE4 for some 75-200 kW, 2/4/6-pole motors, while IEC 60034-30-1:2025 includes IE5 and explicitly excludes mechanical-commutator motors and motors fully integrated into products.

Refs S6, S7, S11

DOE timeline: 88 FR 36066 (2023-06-01), effective 2023-09-29, compliance 2027-06-01

US market adds its own compliance gate

DOE links both the CFR pathway and the direct-final-rule timeline. That timing matters in screening: a Bav-up concept can look acceptable under older assumptions but still fail if launch lands in or after the June 1, 2027 compliance window.

Refs S14

10 CFR 431.25 includes a June 1, 2027 transition and extends several motor classes to 750 hp

US compliance scope changes again in 2027

The US rule text now includes a second compliance window from June 1, 2027 with expanded horsepower coverage (including NEMA A/B and IEC N classes up to 750 hp, plus dedicated air-over tables). If product launch lands near or after that date, design approvals tied only to a 1-500 hp assumption can become stale before shipment.

Refs S21

10 CFR 429.64: minimum sample size 5 units; inverter-only represented efficiency includes inverter

Efficiency claims need an evidence path, not just a marketing phrase

In US workflows, represented nominal full-load efficiency used in catalogs/nameplates/marketing is regulated. 10 CFR 429.64 requires a documented test or AEDM pathway, uses Appendix B nominal-efficiency mapping, and sets a minimum five-unit sampling rule (or test each unit when fewer are produced). Claims for inverter-only motors are explicitly inclusive of the inverter.

Refs S22

IEC 61800-9-2 edition 2.1 (published 2025-12-23) extends IES classes to IES5

Motor IE class and drive-system IES class split is now sharper

For variable-speed projects, motor IE and complete power-drive-system IES are not interchangeable labels. IEC 61800-9-2:2023+AMD1:2025 expands the IES framework and interpolation handling, so high-Bav approvals should state whether the target is motor-only or drive-system efficiency.

Refs S16

75 kW case: total loss +13% / +33% at rated point (converter dependent)

Inverter penalty can be large in real tests

A peer-reviewed 75 kW induction-motor experiment reports higher total losses under converter supply than sinusoidal supply, with one converter adding about 13% and another about 33% at rated point. At 45 Hz operation, increases around 25%-28% were also reported. Treat this as a case signal, not a universal multiplier.

Refs S15

Arnold NdFeB table: Br temp coefficient near -0.12%/degC; max temperature bands 80/120/150/180/200 degC

PM thermal margin must be grade-specific

Public NdFeB grade tables show that magnetic-flux sensitivity and allowable temperature are grade-dependent, not one universal threshold. A rough implication is that if Br temperature coefficient is about -0.12%/degC, a +100 degC rise can imply around 12% reversible Br reduction before irreversible effects are evaluated.

Refs S17

USGS 2026: net import reliance 53% -> 67%, apparent consumption 9,010 -> 27,000 t REO-eq, NdPr oxide $55 -> $69/kg (2024 -> 2025)

Rare-earth supply concentration is a real PM decision input

For PM-heavy synchronous routes, magnetic loading and material strategy should be reviewed together. USGS 2026 reports import growth, rising net import reliance, and NdPr price pressure in the same period, plus concentrated import sources and April 2025 export-control changes from China.

Refs S18

IEA 2026: magnet rare-earth demand doubled since 2015; +30% expected by 2030; China still ~95% of permanent magnet output

Demand growth keeps PM procurement risk active

Even when electromagnetic checks pass, a high-Bav PM route can fail schedule or cost goals if procurement resilience is ignored. Keep PM material path, supplier region, and fallback plan in the same review package as Bav decisions.

Refs S19

25 kW in-wheel IPMSM case: magnet average temperature 156.9 degC baseline, 148.8 degC after airflow redesign

High-speed PM thermal excursions can approach demagnetization windows

A 2022 open-access PMSM study shows how quickly PM temperature can move near demagnetization-sensitive territory in high-speed operation. Use this as a bounded case warning, not a universal threshold.

Refs S20

15 ft / ~2,150 V spikes / 3.1x VLL insulation reference

Inverter cable length and insulation limits are now explicit gates

DOE Tip Sheet #14 (published 2014, accessed 2026-04-26) notes that reflected-wave damage is usually less severe when motor-drive cable length is below about 15 feet. It also reports that voltage spikes can reach about 2,150 V in some 480 V systems and references NEMA-aligned inverter-duty insulation guidance of 3.1x rated line voltage (1,426 V for a 460 V motor).

Refs S28

20% speed cut -> about 50% power cut (fan/pump law)

Variable-torque duty can shift the best efficiency lever

DOE Tip Sheet #11 highlights a practical counterexample to magnetic-loading-first thinking: for variable-torque loads, speed control can dominate energy savings. The same sheet also shows that ASD efficiency at extremely low load can drop materially (for example, around 35%-61% at 1.6% load depending on drive size), and it explicitly labels the values as representative rather than a universal cross-brand ranking.

Refs S29

Boundary layer

Boundary conditions that flip the conclusion

These are the decision questions the previous version left too implicit. A higher Bav argument only becomes usable when geometry, duty, material, and compliance scope stay attached to the number.

What the source refresh changes in practice

Question	What the refreshed evidence says	What to do if that evidence is missing	Refs
Does a higher Bav number prove the iron is still safe?	No. Bav is only the average air-gap flux density. The induction-motor note still limits tooth flux to <1.8 T and core flux to about 1.3-1.5 T, so tooth and yoke checks remain separate.	Treat the proposal as incomplete. Ask for tooth and yoke flux from the same iteration before accepting the compactness claim.	S2
Will iron loss necessarily rise?	Not at every level. Sheet loss rises in the official NGO tables, yet the 5.5 kW motor study still reduced total iron loss because the core shrank as Bav climbed.	Split steel loss per kilogram from total motor loss. Without both, a simple “iron loss rises” or “iron loss falls” claim is not trustworthy.	S3, S4, S8
Can a 50-60 Hz band be reused on inverter or high-frequency duty?	Not safely. Official product data is already very condition-sensitive: thyssenkrupp lists about 12.0-12.5 W/kg at 400 Hz and 1 T for one 0.25 mm traction grade, while JFE high-frequency grades and stress-relief conditions are reported separately.	Do not reuse the line-frequency upper band. Ask for matching steel grade, thickness, joining route, and loss data for the actual duty.	S5, S8
If Bav is near the upper band, can terminal voltage unbalance be treated as a secondary issue?	No. DOE guidance based on NEMA MG-1 logic states that voltage unbalance should be kept within 1% at motor terminals, and shows that current unbalance can be 6-10x the voltage unbalance (27.7% current unbalance in a 100 hp example at 2.5% voltage unbalance).	Add a power-quality gate before high-band approval: measured line voltages, percent unbalance, and resulting current spread under representative load. If missing, mark as not ready.	S24, S25
Can we keep the same high-Bav approval when operating voltage drifts to +/-10%?	Not safely. DOE Tip Sheet #9 shows that at 90% nameplate voltage, induction-motor torque can drop by about 19% and efficiency by 1%-3%; at 110%, torque can rise about 21% while PF can worsen by 2%-7%. Torque sensitivity follows the voltage-ratio-square behavior.	Require an off-design voltage check in the same review package. If the project cannot control supply-voltage range, tighten the usable Bav band.	S26
Does a converter-fed high-Bav result remain valid if PWM cable/rise-time stress is unknown?	No. DOE Tip Sheet #15 indicates that cable length and rise time can amplify PWM peaks; high-frequency overshoots above about 1,000 V can trigger turn-to-turn stress in existing low-voltage motors, and higher carrier frequencies can increase bearing-risk pressure.	Require cable length, carrier-frequency setting, and overshoot-mitigation evidence (for example dV/dt filter / grounding / bearing-current controls) before treating the result as executable.	S27
Can a converter-fed claim rely on a line-operated IE label plus one test point?	No. IEC 60034-30-1:2025 is a line-operated single-speed scope, while IEC TS 60034-30-2:2016 addresses variable-speed machines not covered by 60034-30-1 and not designed for direct-on-line operation. IEC 60034-2-3:2024 then defines converter-fed loss mapping across seven standardized load points.	Split the claim into four gates: 30-1/30-2 scope, motor class, converter-duty category, and converter-fed loss verification. If one part is missing, mark the decision as not ready.	S6, S12, S13, S23
Can IE4 / IE5 labels be copied directly into every “choice of specific electric and magnetic loading” discussion?	No. IEC 60034-30-1:2025 includes IE classes but excludes motors with mechanical commutators and motors fully integrated into products that cannot be tested separately.	Map standards scope first: machine type, integration level, and testability. If out of scope, mark the target as project/customer-specific rather than regulatory class.	S6
When does efficiency or compliance become the real limiter?	As of July 1, 2023 the EU stage-2 rule adds IE4 for some 75-200 kW, 2/4/6-pole motors, and IEC 60034-1:2026 plus IEC 60034-2-1:2024 refresh the baseline for rating/performance and loss/efficiency determination.	Do not approve a higher Bav move until IE target, duty type, machine scope, and the exact loss/efficiency method revision are written into the same review package.	S7, S9, S10, S11
If the project is US-bound, can we treat “1-500 hp” as the stable final scope?	Not safely for long-cycle programs. DOE already links the direct-final-rule timeline (effective 2023-09-29, compliance 2027-06-01), and 10 CFR 431.25 includes the June 1, 2027 transition window that extends several covered classes to 750 hp and adds dedicated air-over efficiency tables.	Add a date gate in the design review: planned shipment/compliance date, motor class, horsepower band, and whether air-over conditions apply.	S14, S21
Can we publish efficiency claims for out-of-scope or not-yet-covered motors without a formal evidence path?	No. 10 CFR 429.64 treats catalog/nameplate/marketing efficiency statements as regulated representations and ties them to appendix/test-method logic, including a minimum five-unit sampling rule (or test every unit when fewer are produced) and an inverter-inclusive represented efficiency requirement for inverter-only motors.	If representation logic is missing, mark the decision as commercially blocked even when electromagnetic screening looks acceptable.	S22
Can motor IE language be used as a direct proxy for inverter-fed drive-system efficiency?	No. IEC 61800-9-2 separates complete power-drive-system efficiency classes (IES) from motor-only classifications and now extends IES classes to IES5 in edition 2.1.	Declare decision scope explicitly: motor-only IE target vs drive-system IES target. Without this split, high-Bav claims are easy to overstate.	S16
For PM synchronous designs, can one magnet-temperature rule be reused across all grades?	No. Public NdFeB tables show grade-dependent temperature ratings and temperature coefficients. Example grade classes are listed with maximum operating temperatures around 80/120/150/180/200 degC, and a common Br temperature coefficient is around -0.12%/degC.	Require grade-specific magnet data, expected rotor/hotspot temperature, and demagnetization evidence from the same operating scenario before accepting upper-band Bav decisions.	S17, S20
Can a PM-heavy high-Bav choice ignore rare-earth procurement concentration?	Not safely. USGS 2026 reports rising net import reliance (53% -> 67%), apparent consumption growth (9,010 -> 27,000 t REO-eq), NdPr oxide price movement ($55 -> $69/kg), and concentrated import sources, while IEA 2026 highlights continuing concentration in permanent-magnet production and expected demand growth to 2030.	Keep PM material path and supply resilience in the same decision package as magnetic loading. If supplier-region fallback is missing, mark the decision as conditionally incomplete.	S18, S19
Can inverter-fed high-band Bav be approved without cable-length and rise-time evidence?	No. DOE Tip Sheet #14 provides practical reflected-wave thresholds and insulation-stress context; ignoring cable length and terminal peak voltage leaves a major failure path open.	Require motor-drive cable length, rise-time category, expected terminal peak voltage, and mitigation plan (filter/grounding/cable strategy). If missing, keep the proposal in boundary state.	S28
If the process load is variable torque, is pushing Bav always the first efficiency lever?	Not always. DOE Tip Sheet #11 shows that for fan/pump-like loads, speed reduction can dominate power savings (for example, 20% speed reduction -> about 50% power reduction).	Before approving a Bav-up-for-efficiency argument, request a system-level comparison: speed-control savings path, ASD part-load efficiency map, and motor-loss path under the same duty cycle.	S29

How-to method

How to determine magnetic loading: estimate Bav before you optimize

Use this section when the query is specifically "how to determine magnetic loading". First compute Bav from flux and geometry, then run the checker and verification gates on the same canonical page.

Fast estimation formula and interpretation

Use this as a pre-design estimate, not final approval.

Core relation

Bav = (p x Phi) / (pi x D x L)

p = pole count, Phi = flux per pole (Wb), D = armature diameter (m), L = effective core length (m).

Keep this boundary in view

A valid Bav estimate still needs tooth/core saturation checks, duty-specific loss evidence, and thermal verification before any high-band decision is approved.

Input checklist before calculation

Input	Typical source	Risk if missing	Minimum action
Pole count (p)	Electrical architecture or machine datasheet	Wrong family band and invalid comparison	Lock machine family before running the checker
Flux per pole (Phi)	Preliminary magnetic-circuit or EM model	Bav is guessed from experience only	Use a conservative Phi estimate and mark uncertainty
D and L	Current geometry package or frame target	Formula result cannot map to real package constraints	Use effective dimensions from the same revision
Duty and cooling assumptions	Requirement sheet and thermal baseline	Usable band is overestimated	Run checker and verification gates with the same assumptions

Generic choice entry

Choice of specific magnetic loading: lock context before you lock Bav

If the query is still generic, do not freeze one Bav number too early. Use this route first: lock machine family, lock duty context, then enter the decision band and verification layer.

Three-step route for the generic query

1) Lock machine family

Induction, synchronous/PM, and DC routes do not share one safe upper Bav. Start by selecting the family.

2) Lock duty context

Separate mains, inverter duty, and high-frequency assumptions before treating a high-Bav result as actionable.

3) Use bands + verification

Only move into high-band decisions when tooth/core flux, PF/no-load current, loss, and thermal evidence are planned in the same review.

Decision layer

Break “high loading” back into actionable bands and tradeoffs

Read the band first, then machine-family ranges, then the tradeoff matrix. This keeps the generic query on a deterministic path.

Screening bands for the checker

Band	Typical Bav signal	What it usually buys	What usually gets worse	Best next action
Conservative	Below the normal public band for the selected machine family	PF, thermal margin, and saturation headroom stay easier to manage	Frame size and active-material usage may stay larger than necessary	Raise Bav only if compactness is still the main problem
Balanced	Inside the public band with reasonable cooling and frequency assumptions	Compactness improves without immediately forcing a loss or saturation problem	Still not “free”; tooth/core checks and no-load current remain necessary	Hold the value unless packaging or cost still misses target
High	Near the top of the public band after cooling / priority adjustments	Smaller machine, higher output coefficient, lower active-material size	PF pressure, iron loss, and saturation checks become explicit decision gates	Move forward only with electromagnetic plus thermal evidence
Boundary	Above the public screening band for the chosen machine class	May still work in special designs with better steel, cooling, or topology	The usual textbook guardrails no longer protect you	Treat as FEA territory, not a quick screening win

Mid-page CTA

Need a screening-ready handoff before detailed design?

If the checker lands near the top band, send the Bav target, machine family, and duty context before the next review. We will point you to the smallest safe validation step.

Email the screening brief Jump to the verification checklist Browse all technical resources

How the checker makes its decision

The tool is intentionally simple. It does not claim to replace electromagnetic design, but it does force the user to keep machine family, cooling, frequency, and design priority in the same conversation.

Start from the public machine-family band

The first threshold comes from textbook or lecture-note Bav bands. That stops the tool from pretending every machine class shares one universal target.

Adjust the top band for cooling, frequency, and objective

Cooling widens the usable high end a little. Frequency and efficiency-first priorities usually tighten it. Torque-density-first decisions widen it only slightly.

Score what usually breaks first

The result surfaces four review signals together: size leverage, PF/efficiency risk, thermal burden, and saturation pressure.

Force a next action

Every result state ends with a concrete move: stay in band, validate losses and no-load current, or step back and move into FEA.

Tool weighting and uncertainty

Swipe sideways on mobile when the table gets dense.

Factor	Why it matters	How the checker treats it
Machine family	Public Bav ranges differ materially between DC, induction, synchronous, and turbo classes.	Sets the baseline band first.
Cooling margin	Higher losses only stay acceptable if the thermal path can carry them.	Slightly moves the top of the working band.
Frequency context	Iron-loss pressure rises with electrical frequency and inverter harmonics.	Tightens the high end of the band.
Converter category	IEC TS 60034-25:2022 distinguishes converter-capable and converter-duty motors and adds derating guidance.	Not modeled directly, so the checker flags category and derating evidence as a required follow-up gate.
Electrical steel and lamination route	Thin high-frequency NGO grades, stacking method, and insulation system can materially change whether loss stays acceptable.	Not modeled directly, so the tool flags this as a mandatory follow-up check.
Primary objective	Compactness and torque density accept a different trade than efficiency-first designs.	Raises or lowers the usable high end slightly.
Known blind spots	Lamination grade, slotting, waveform, and exact topology change the final answer.	Shown as a visible boundary note on every result.
Regulatory market scope	EU and US compliance pathways do not share one identical acceptance workflow.	Not modeled directly, so the checker requires explicit market scope (EU, US, or both) before approval.

Known limit: this is screening, not approval

Any design near the top of the band still needs tooth/core flux, PF, loss, and temperature evidence in the same review package.

Scenario examples

Four quick scenarios

Frame-limited induction motor

The design is running out of package space, cooling is still acceptable, and the team is willing to trade some PF margin for a smaller frame.

A move from the middle of the induction band toward the high end can be justified, but only if tooth/core flux and no-load current stay inside review limits.

Efficiency-first retrofit machine

The baseline machine already struggles on power factor or no-load current, and the project goal is efficiency rather than compactness.

Higher specific magnetic loading is usually the wrong first lever. Fix magnetic-circuit or leakage issues before pushing Bav upward.

High-frequency inverter duty

The electrical frequency or harmonic content is materially above the quiet 50-60 Hz textbook case.

The same Bav becomes less forgiving. Loss, temperature rise, and steel selection matter more than the simple “smaller machine” story. As one official example, thyssenkrupp positions a 0.25 mm traction grade at 12.5 W/kg at 400 Hz and 1 T; without comparable material data, do not reuse a 50-60 Hz upper band.

US-bound variable-speed shipment

The motor will be sold into the US market and the project still tries to push Bav upward under inverter duty.

Treat it as a dual-gate problem: market compliance and converter-fed loss evidence. DOE points to 10 CFR 431.25-.26 standards and 431.14-.21 test procedures, while converter-fed losses should be reviewed with IEC 60034-2-3/60034-25 logic before the compactness claim is approved.

Verification layer

What to verify before you trust a high-Bav decision

This is the step that turns a keyword page into an engineering review aid. If these data points are missing, the design argument is not ready for approval.

Turn the intuition into a verification task list

Decision gate	Minimum data to request or calculate	Why brochure logic is not enough
Tooth and core saturation	Tooth flux density, yoke flux density, and the lamination grade assumptions used in the same iteration	A higher air-gap average says nothing about whether the iron still has room.
Power-factor impact	No-load current, magnetizing current, and estimated full-load PF from the same electromagnetic model	The classic downside of high Bav often appears as PF pressure first, especially in induction designs.
Thermal burden	Core-loss split, temperature rise estimate, and cooling assumptions	Higher Bav only works if the additional loss still leaves thermal headroom.
Material stack evidence	Electrical-steel grade, lamination thickness, joining route (welded / bonded), stress-relief state (as-sheared / annealed), and the loss data that matches them	Steel-level loss trends and motor-level loss trends can diverge. You need both before calling the decision “validated,” and they must come from compatible test conditions.
Output benefit	Frame-size reduction, active-material reduction, or output-coefficient improvement stated numerically	Otherwise the “high loading” decision has cost but no quantified payoff.
Duty-cycle reality	Frequency range, waveform quality, and inverter harmonic notes	The 50-60 Hz textbook band is not a free pass for high-frequency duty.
Power-quality gate	Terminal-voltage balance measurement, expected supply-voltage range, and current-unbalance data under representative load	A near-top-band Bav decision can fail in practice when voltage unbalance/off-design voltage drives PF and thermal stress beyond margin.
Converter-duty category	State whether the motor is treated as converter-capable or converter-duty, and include any derating rule used in the review package	Without this category split, inverter-fed risk is hidden behind one ambiguous label.
Converter-fed loss map	Loss/efficiency evidence at standardized load points across constant-flux, field-weakening, and overload ranges for the actual drive path	One rated-point value can understate inverter-fed penalties; converter-fed duty needs load-map evidence.
PM magnet thermal-demagnetization margin (for synchronous PM routes)	Magnet grade class, reversible temperature coefficient, estimated rotor/hotspot temperature range, and demagnetization evidence under real duty transitions	Without grade-level PM temperature evidence, a high-Bav synchronous result can look feasible in screening but fail after thermal coupling or high-speed operation is modeled.
Standards scope map	Machine type (commutator / non-commutator), integration level (standalone / integrated), testability, and the exact standard revision used in the claim	An IE-class label can be out of scope if the motor type or integration mode is excluded by the standard.
Line-operated vs converter-fed standard split	State which standard family applies for this machine: IEC 60034-30-1 (line-operated single-speed) or IEC TS 60034-30-2 (variable-speed non-DOL), and link it to the selected loss-verification method	Without this split, teams can approve high Bav using the wrong efficiency-class scope.
Efficiency / compliance target	Required IE class or customer efficiency target, duty type, pole-count / power scope, temperature-rise basis, and loss/efficiency method revision	IE4 / IE5 language alone does not prove the same motor still complies after Bav is raised.
US market path (if applicable)	Whether the product is distributed in US commerce, and if yes, which 10 CFR 431 standards/test routes are being used for the decision package	EU-only evidence can leave a late US compliance gap even when the electromagnetic design is otherwise acceptable.
US rule-transition timing (if applicable)	Planned shipment/compliance date, covered motor class mapping, horsepower range, and whether air-over conditions apply under 10 CFR 431.25 timelines	A high-Bav concept approved on old scope assumptions can fail late if launch falls into the post-2027 compliance window.
Efficiency-representation evidence path	If efficiency values will appear in catalogs/nameplates/marketing: represented nominal full-load efficiency method, sample/AEDM basis, minimum five-unit rule (or full-unit test when <5), and linked appendix/test route; include inverter in represented efficiency for inverter-only motors	In US workflows, claim language can create enforcement exposure even before shipment if representation evidence is missing or sampled incorrectly.
Drive-system efficiency scope (for inverter-fed projects)	State whether the target is motor-only IE or complete drive-system IES, and list which IEC 61800-9-2 class path is being used	Without this scope split, teams often over-apply motor labels to system-level performance claims.
PM material supply resilience (if PM route is selected)	NdPr/Dy material assumptions, supplier-region mix, lead-time exposure, and at least one fallback sourcing route	A high-Bav PM design can pass electromagnetic review but still fail launch timing or cost targets under concentrated supply shocks.
PWM insulation-stress gate (inverter-fed routes)	Motor-drive cable length, expected dV/dt or rise-time class, measured/calculated terminal peak voltage, and insulation class evidence against inverter-duty threshold (for example 3.1x line-voltage reference for 460 V class motors).	High-Bav decisions can pass static loss checks but still fail in service because reflected-wave stress and cable setup were never validated.
Variable-torque system-efficiency gate	Duty-cycle load profile, speed-control feasibility, ASD part-load efficiency map for the selected drive size, and motor-loss profile under the same points.	When variable-torque operation dominates, a Bav-only optimization can miss larger system-level savings or hide low-load drive losses.

Risk layer

The risks people skip when they only say “higher Bav”

Risk	Signal	Impact	Mitigation
Saturation creep	Tooth or yoke flux values are not reviewed while Bav is pushed upward	The machine may lose the expected size gain once iron dimensions are forced back up	Review tooth/core flux together with the Bav proposal, not after it.
Poorer power factor	Induction-machine design already has weak PF or high no-load current	The machine can become electrically unattractive even if the frame shrinks	Treat PF and no-load current as first-class gates before approving higher Bav.
Thermal overclaim	Frequency rises or cooling weakens, but the same Bav is reused from a lower-stress case	Core loss and temperature rise undermine the compactness gain	Tighten the usable band and require loss separation or thermal evidence.
Power-quality blind spot	Bav is pushed upward without measured terminal-voltage balance or off-design voltage checks	A concept that looked acceptable in nominal simulations can fail on PF, heating, and reliability once real supply conditions appear.	Add a mandatory power-quality gate: percent voltage unbalance, current spread, and expected supply-voltage range under load.
Material-data mismatch	The proposal quotes a Bav target but not the electrical-steel grade, lamination thickness, or joining route	The team can underestimate remagnetization loss or overstate efficiency headroom, especially in inverter-fed duty	Request the exact steel table or supplier data and check whether the stack is welded, bonded, or otherwise constrained.
Machine-family copy-paste	A Bav target from DC or synchronous design is applied unchanged to an induction machine	The chosen threshold can be misleading before the real design work starts	Start with machine-family bands first, then adjust.
Motor IE label used as a full drive-efficiency proxy	The review uses motor IE class alone to approve inverter-fed Bav increases without converter/cable/filter loss mapping.	The approved concept can miss real system losses and fail efficiency or thermal targets in later validation.	Separate motor-class statements from converter-fed loss mapping and require converter-duty evidence in the same package.
PWM overshoot and bearing-stress omission	Inverter-fed high-Bav approval is issued without cable-length, rise-time, carrier-frequency, or overshoot controls.	Turn-to-turn stress and bearing-current damage can dominate field failures even when steady-state loss checks looked acceptable.	Require a PWM stress checklist (cable length, expected peak voltage, carrier frequency, filter/grounding/bearing mitigation) before approval.
Line-operated / converter-fed standards mix-up	The team applies IEC 60034-30-1 line-operated assumptions to variable-speed machines that should be screened through IEC TS 60034-30-2 plus converter-fed loss mapping.	A high-Bav concept can be approved under the wrong standards scope and fail later in converter-fed verification.	Add a mandatory standard-family gate (30-1 vs 30-2) before approving any inverter-fed high-band decision.
Compliance scope mismatch	The proposal cites IE4 / IE5 or a customer efficiency class, but the Bav increase is not tied to the actual motor power range, pole count, duty type, or thermal basis.	Late redesign or certification risk appears after the compactness story has already been sold internally.	Lock the applicable efficiency class and duty scope first, then approve the Bav move only against that same definition.
IE-class over-claim on out-of-scope motor types	The review labels a DC commutator motor or a fully integrated motor as IE4 / IE5 compliant without checking standards exclusions.	The team can approve a Bav/ac direction on a false compliance premise, creating rework and commercial risk.	Add a standards-scope gate (machine type, integration, and testability) before using IE-class language in decision approval.
US compliance blind spot	Design reviews focus on EU/IEC references only while the product is also planned for US distribution.	Late compliance and certification rework can erase the schedule benefit of early compactness decisions.	Add a market-scope checkpoint early and include DOE 10 CFR pathway checks when US shipment is in scope.
US rule-window miss (post-2027)	The review locks assumptions around older US horsepower scope and ignores the June 1, 2027 transition in 10 CFR 431.25.	A concept that looked compliant during early review can move out of scope alignment near launch and trigger redesign or re-qualification.	Add a compliance-date checkpoint and verify motor class + horsepower + air-over status against the effective rule window.
Efficiency claim without representation evidence	Catalog, proposal, or nameplate efficiency language is used before sample/test/AEDM representation logic is documented.	Commercial and compliance exposure appears even if the electromagnetic concept remains technically feasible.	Treat efficiency language as a gated output; release it only with traceable representation evidence tied to the applicable test route.
PM thermal-demagnetization miss	Synchronous PM decisions push Bav upward without grade-level magnet-temperature and demagnetization evidence.	The concept can pass early screening but lose torque margin or require redesign after thermal/high-speed validation.	Add a mandatory PM-grade temperature and demagnetization gate before approving high-band synchronous Bav values.
PM supply concentration shock	The design depends on PM material assumptions but does not include supplier-region concentration or fallback sourcing paths.	Cost, lead time, or launch schedule can break even when the electromagnetic concept is valid.	Pair every PM high-Bav proposal with a material-path resilience check (NdPr/Dy mix, region, fallback supplier strategy).
Wrong efficiency lever under variable-torque duty	Teams keep pushing Bav while speed-control options and ASD part-load efficiency are not compared in the same review.	Project can accept higher magnetic risk but still miss the larger system-level energy opportunity.	Add a side-by-side decision gate: Bav path vs speed-control path, both on the same duty-cycle loss map.

Smallest safe continue path

1. Lock the machine family and duty first. Do not reuse one Bav across every scenario.

2. Quantify the size upside and the PF / loss penalty together.

3. Once the design approaches the top band, switch to combined electromagnetic and thermal validation.

FAQ

Keep the repeated decision questions in one traceable place

Definition and band

Design trade

Using the checker

Source chain, evidence limits, and next step

The page now mixes public machine-design references, peer-reviewed case studies, cross-vendor official electrical-steel and PM magnet-grade data, DOE power-quality and voltage-stress guidance, NEMA standards-structure mapping for voltage-unbalance derating, current IEC standards, EU/US compliance references, US regulatory text on scope transitions and efficiency representations, and recent mineral-supply risk signals. Where public evidence is still thin, the gap is stated instead of filled with a generic claim.

Public sources mapped to the conclusions

Accessed 2026-04-26

Principles of Electrical Machines Design, publisher sample PDF

Magnetic loading state	What it usually means	Smallest safe next action
In-band baseline	You can continue screening without forcing immediate boundary review.	Keep machine family + duty assumptions fixed and run the checker flow.
Upper-band proposal	Compactness upside may be real, but PF/thermal/saturation pressure tighten together.	Move to the verification checklist before approving procurement or tooling steps.
Boundary-state proposal	This is no longer a quick-screen decision.	Treat as conditional and switch to detailed electromagnetic + thermal validation.

Induction-motor screening state	Bav screening band	What to do next
PF/efficiency first	0.35-0.45 T	Hold conservative range and verify no-load current + thermal assumptions first.
Balanced baseline	0.45-0.55 T	Keep in-band and validate tooth/core flux density with loss checks.
Compactness push	0.55-0.60 T	Proceed only with complete electromagnetic + thermal evidence.
Boundary proposal	Above ~0.60 T	Treat as boundary-state design and do not freeze procurement/tooling before validation closure.

Specific magnetic loading checker: when higher Bav helps and hurts

Magnetic loading: quick answer before machine-specific deep dives

Advantages and disadvantages of highly specific magnetic loading: what stays true after the equations

Choice of specific magnetic loading in induction motor: classify the band before optimizing size

Choice of specific magnetic loading in synchronous machine: separate topology assumptions before you push Bav

Choice of specific electric and magnetic loading: map intent first, then pair Bav and ac for DC machines

What was missing, what was added, and what is still pending

What changed after a stronger source check

Boundary conditions that flip the conclusion

How to determine magnetic loading: estimate Bav before you optimize

Choice of specific magnetic loading: lock context before you lock Bav

Break “high loading” back into actionable bands and tradeoffs

Four quick scenarios

What to verify before you trust a high-Bav decision

Keep the repeated decision questions in one traceable place

What is specific magnetic loading in plain language?

Is higher specific magnetic loading always better?

Does this page explicitly answer "magnetic loading"?

Should "magnetic loading" have a separate dedicated page?

What do people mean by the advantages and disadvantages of highly specific magnetic loading?

How should I interpret "choice of specific electric and magnetic loading"?

What Bav range should I start with?

How should I answer the generic query "choice of specific magnetic loading" before machine type is fixed?

Does this page explicitly answer "how to determine magnetic loading"?

Does this page explicitly answer "choice of specific magnetic loading in induction motor"?

Does this page explicitly answer "choice of specific magnetic loading in synchronous machine"?

Why does higher Bav reduce size?

Why does power factor often get worse?

Why do some sources say iron loss rises, while one motor study shows it can fall?

Does higher Bav always increase overload capacity?

What breaks first in a bad high-Bav decision?

Can you quote a fixed size or cost saving for every +0.1 T increase in Bav?

Is this checker valid for PM or axial-flux machines?

Why does cooling change the top band only slightly?

Why does higher frequency tighten the band?

Before approving high-band Bav, how strict should voltage-balance checks be?

If the motor has an IE4 / IE5 class, does that already include converter harmonic losses?

What is the practical difference between converter-capable and converter-duty for this checker?

Why do cable length and carrier frequency matter in inverter-fed high-Bav decisions?

For synchronous PM machines, how should I interpret the -0.12%/degC magnet coefficient?

Why does this page include rare-earth supply data in a magnetic-loading decision?

Does better steel or adhesive bonding automatically make a high Bav decision safe?

What should I do with a boundary result?

What if the project has IE4 / IE5 or regulated efficiency targets?

Can I cite IE4 / IE5 labels directly for DC commutator motors?

If we also ship to the US, what minimum compliance check should be added?

What if the launch date lands near or after June 1, 2027 in the US?

Source chain, evidence limits, and next step

Magnetic loading: quick answer

FAQ: magnetic loading

Magnetic loading of induction motor: quick answer

FAQ: magnetic loading of induction motor

How to use this page for a real decision

Technical blog

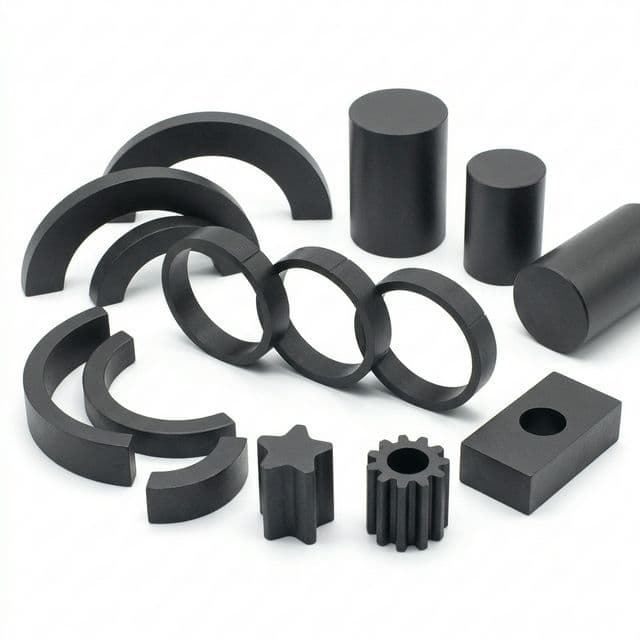

Compression vs injection bonding for custom magnet programs

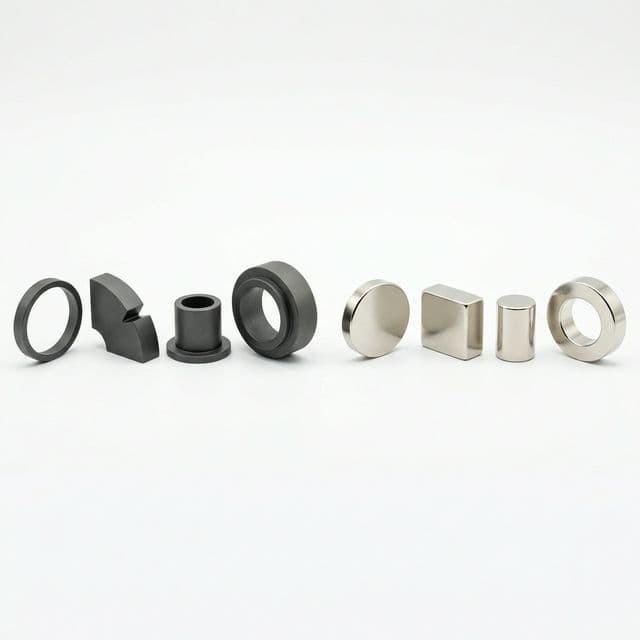

Bonded vs Sintered Magnets Differences: NdFeB decision report for geometry, assembly, risk, and cost

Bonded Magnets Market Update (2026-W17, Slot 1): Lynas Q3 Supply Lift, U.S. Scope Workflow Gate, and Buyer Repricing Moves

Specific magnetic loading checker: when higher Bav helps and hurts

Magnetic loading: quick answer before machine-specific deep dives

Advantages and disadvantages of highly specific magnetic loading: what stays true after the equations

Choice of specific magnetic loading in induction motor: classify the band before optimizing size

Choice of specific magnetic loading in synchronous machine: separate topology assumptions before you push Bav

Choice of specific electric and magnetic loading: map intent first, then pair Bav and ac for DC machines

What was missing, what was added, and what is still pending

What changed after a stronger source check

Boundary conditions that flip the conclusion

How to determine magnetic loading: estimate Bav before you optimize

Choice of specific magnetic loading: lock context before you lock Bav

Break “high loading” back into actionable bands and tradeoffs

Four quick scenarios

What to verify before you trust a high-Bav decision

Keep the repeated decision questions in one traceable place

What is specific magnetic loading in plain language?

Is higher specific magnetic loading always better?

Does this page explicitly answer "magnetic loading"?

Should "magnetic loading" have a separate dedicated page?

What do people mean by the advantages and disadvantages of highly specific magnetic loading?

How should I interpret "choice of specific electric and magnetic loading"?

What Bav range should I start with?

How should I answer the generic query "choice of specific magnetic loading" before machine type is fixed?
